T Series
Drainage Package System
The drainage package system is a pump system that can be optimized for field conditions, developed to replace water collection and septic tanks in environments where natural drainage does not occur.

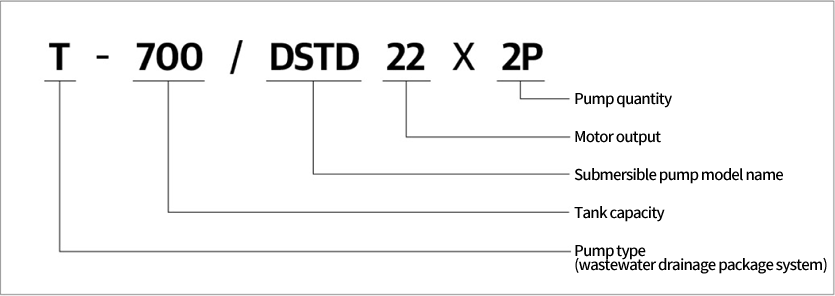

Pump type
System overview
- Odorless sealed sewage tank
- Eco-friendly and corrosion-resistant PP (polypropylene) material applied
- Tank inlet filter applied to prevent foreign substances from entering the pump
- Union type for easy pipe connection
- Separate upper and lower parts manufactured to secure space for transportation and installation
- Artificial intelligence automatic control device that even beginners can easily operate
- Various options (manufacturing and installation) can be applied according to site conditions
Basic configuration of the O·Byesu package system
O·Brewery Package System Control Panel
Outline drawing of the O·Byesu package system
Sewage and drainage package tank specifications
대아펌프 오·배수 패키지 시스템 우수성
Application and Components
In the case of purified human feces, the main component is an acidic substance produced by fermentation at approximately pH 5–7.
| Category | (Old) Daepump O·Drainage Package System | Characteristics | (Current) Daepump O·Drainage Package System | Characteristics |
|---|---|---|---|---|
| Tank Material | FRP (Fiber Reinforced Plastics) | Durability, corrosion resistance, strong Industrial waste (environmental pollution) Detection of human toxic substances |
Polypropylene (PP) | Durable, strong corrosion resistance Recyclable (prevents environmental pollution) No toxic substances to human body Specialized in acid corrosion resistance |
| Tank Structure | Staff type Difficult to transport, install, and repair |
Separate circular type Easy to transport, install, and service |
||
| Tank Thickness | Top plate 8T / Body 7T | Top plate 10T / Body 8T | ||
| Tank Inspection Hole | Not applicable | Applicable (for cleaning foreign substances) | ||
| Tank Filter | Not applicable | Applicable (for cleaning foreign substances) | ||
| Bolt/Nut | Plain Nut (SS400) | Rust present | STS (Stainless Steel) | No rust |
| Gasket/O-ring | EPDM Gasket | Weak in corrosion resistance | Neoprene material gasket | Enhanced corrosion resistance |
| Pipe Connection Type | Bond Socket Type | Cannot be detached | Union O-ring Type (DRF) | Detachable |
How to select tank capacity
| Tank capacity | Sewage discharge |
|---|---|
| 350 | 100 or less |
| 700 | 300 or less |
| 1000 | 450 or less |
| 1400 | 600 or less |
| 2100 | 1000 or less |
