BOOSTER PUMP SYSTEM
What is a Booster Pump System?
The DAE-A PUMP Booster Pump System is an advanced automatic water supply control system consisting of a PID-controlled panel, pumps, header pipes, and a pressure tank.
Designed for use in residential buildings, high-rise complexes, and various other facilities, this system ensures stable water pressure and efficient energy use by adjusting pump speed and operation count according to water demand.
Key Features
- Energy-saving through optimized high-efficiency operation
- Precise pressure control to eliminate water pressure shortages
- All-in-One System for easy installation, operation, and maintenance
- Soft start/stop operation improves system durability and lifespan
Applications
- Residential Facilities: Apartments, high-rise housing
- Public Institutions: Hospitals, schools, sports complexes
- Commercial Buildings: Hotels, saunas, office buildings
- Agricultural Use: Golf courses, orchards, farms
- Industrial Use: Cleaning systems for manufacturing and processing plants
Water Supply and Subscription Equipment
Boiler Supply Water
Industrial Circulation Pumps
Manufacturing Process Equipment
Cooling Water Pumps
High Pressure Washing
Sprinklers
RIO Filtration Units
Standard specifications
| Classification | Individual inverter control | Single inverter control |
| Applicable models | HT, TI, LI, D, M Series | T, L Series |
| Control method | Inverter control for all pumps | Inverter control for only one pump |
| Installation location | Indoor | |
| Operating ambient temperature | -10°C~+40°C | |
| Used liquid | Clean water | |
| Used liquid temperature | 0°C ~ +70°C | |
| Used pump | Vertical Multi-stage Pumps | |
| Available pump count | 2 to 6 | |
| Power | 3Phx220/380V X 60Hz | |
| Confluence pipe | Stainless steel | |

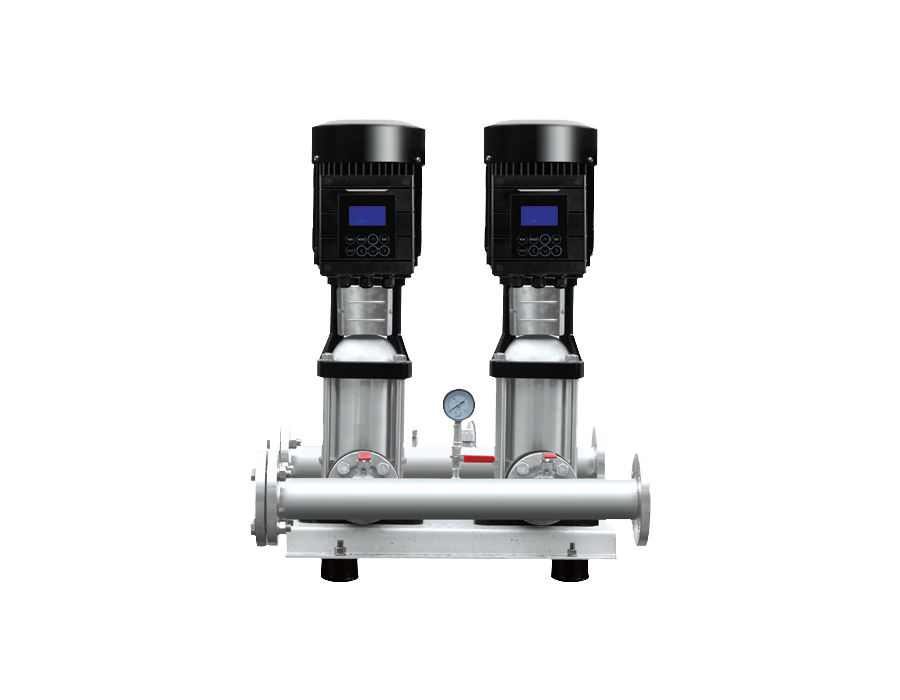

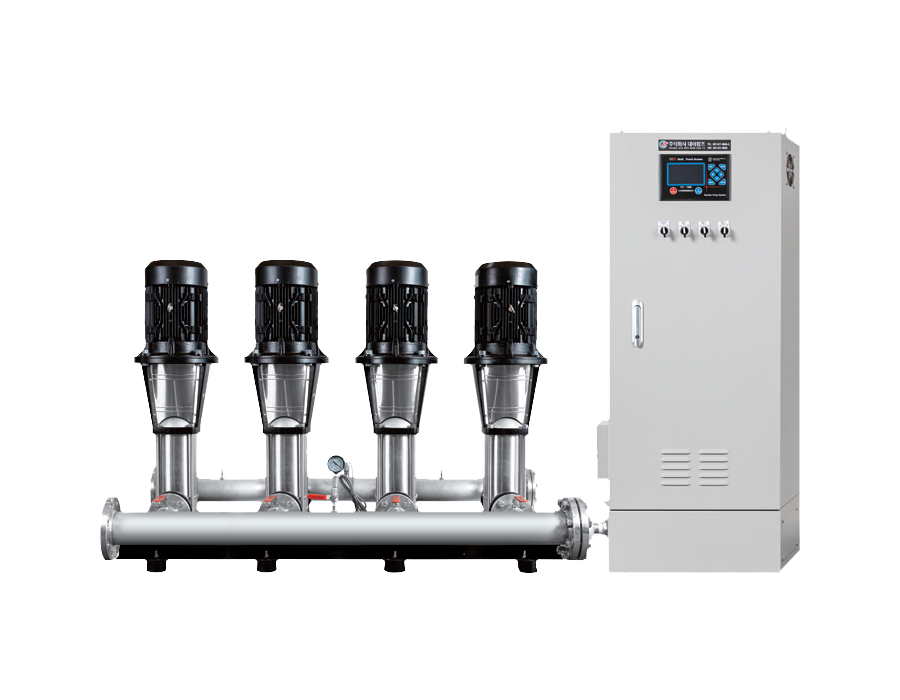

Standard Type

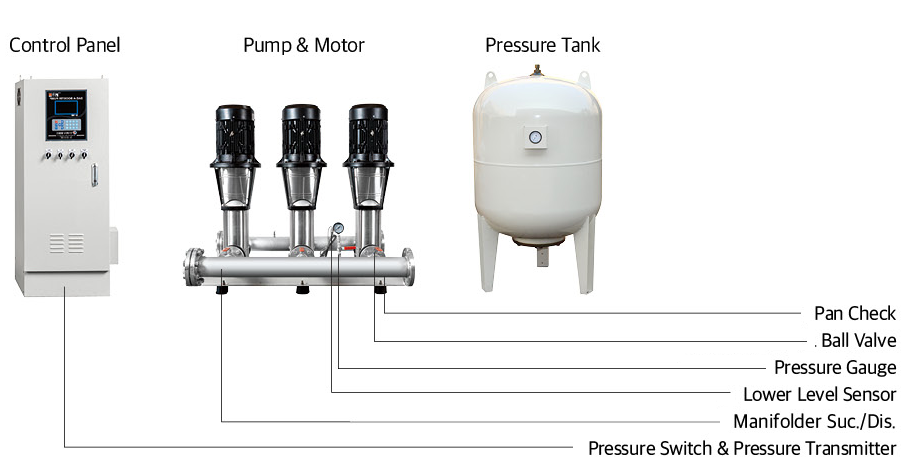

Configuration of Booster Pump System

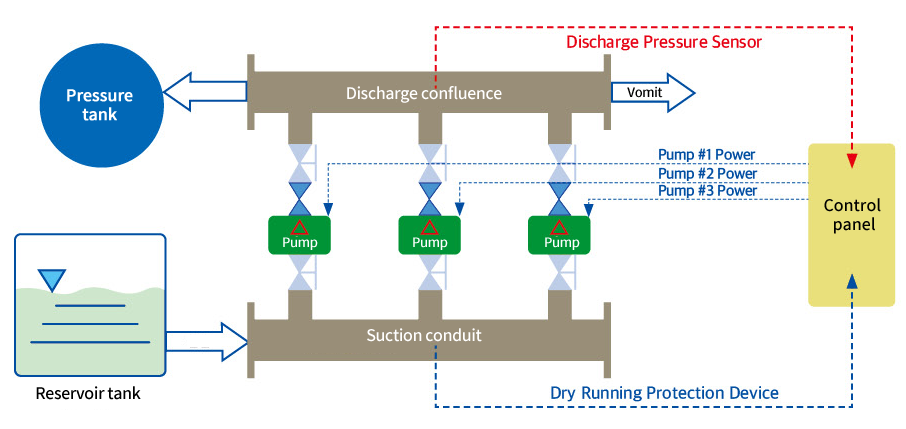

Operation Method of Booster Pump System
